A80 motor
36V 250W mid-drive motor with 80N.m torque at 20RPM.
A80 Mid-Drive System
A80 mid-drive eBike motor supplier for OEM platform evaluation
A80 is the KingClean Lexy mid-drive route for eCity, eTrekking and eTrail programs, with official system facts prepared for sample discussion, datasheet review and RFQ planning.
Official A80 system facts
These values are taken from the A80 official website-ready package and the LEXY eBike catalog source pages listed below.
| Product line | A80 System |
|---|---|
| Positioning | Cost-effective & performance stability |
| Applications | eCity / eTrekking / eTrail |
| System weight | 4.8kg |
| Assist range | 50-80km |
| System IP rating | IP65 |
| Charging time | 4h |
| Communication mode | CAN |
Source basis: A80 official content package, A80 product content JSON/CSV, and LEXY eBike catalog pages 9 and 16.

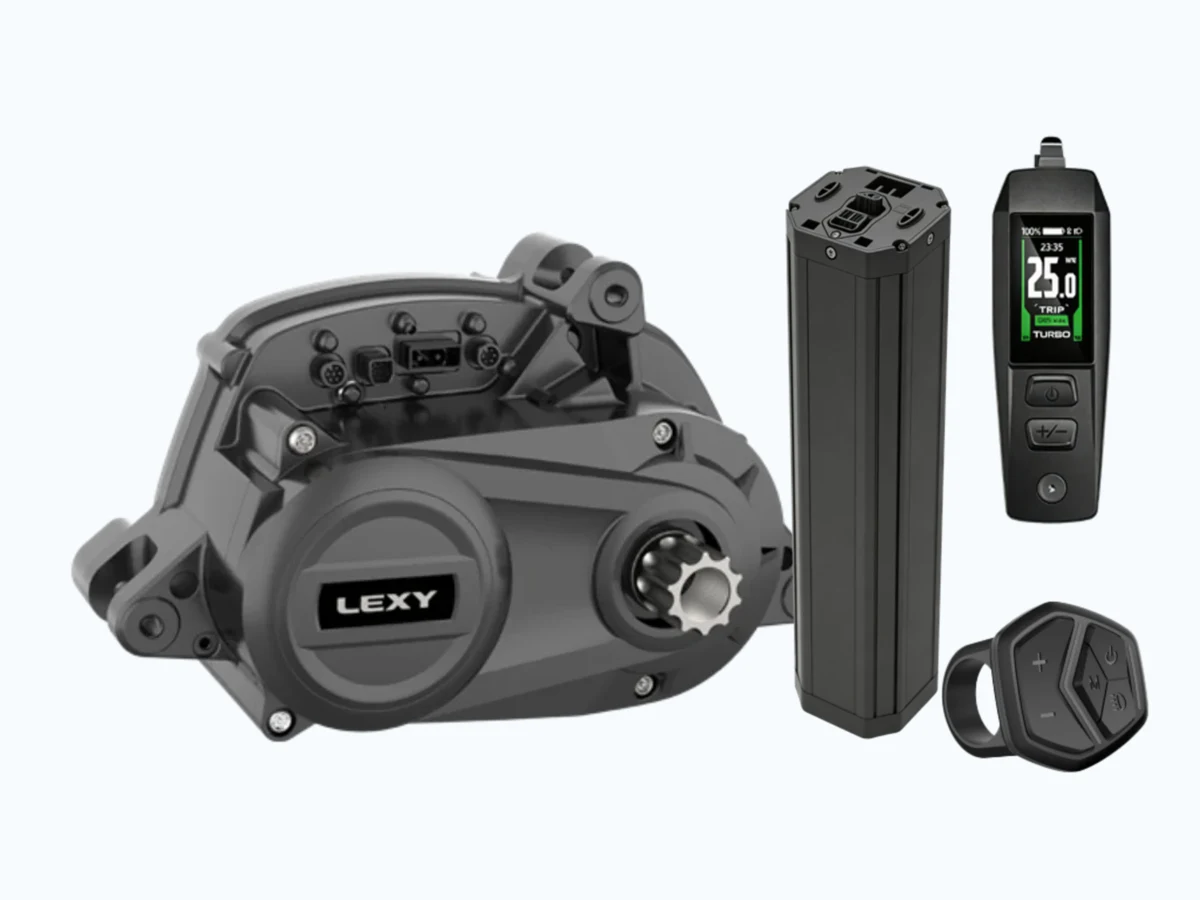

Core component set
A80 sample discussions can start from the complete system package or from specific motor, battery and HMI requirements.
BN21 battery
36V 14AH battery using Samsung 18650 35E battery cells.
DM08C + RM07
TFT 1.4 inch HMI with Bluetooth and APP support, paired with RM07 key.
Mid-drive motor data
The motor-level table helps procurement and engineering teams pre-check fit before requesting samples or CAD/STEP references.
| Weight | 2.8kg |
|---|---|
| Construction | Gear drive |
| Rated voltage | 36/48 DCV |
| Rated output power | 250W |
| Max output power | 500W |
| Max / peak torque | 80N.m / 95N.m |
| Sensor | Speed and Torque Integrated |
| Noise grade | <55dB |
| Communication protocol | CAN/UART |
| Reference / review pathway | ROHS / CE / EN 15194 / ISO 13849. Final applicability must be confirmed for the selected configuration and target market. |
Request A80 samples, datasheets or engineering files
Send company name, target bike category, market, preferred system, sample quantity, requested files, annual volume and launch timeline to echo.li@kingclean.com.
